DGtal::FPLengthEstimator< TConstIterator > Class Template Reference

#include <FPLengthEstimator.h>

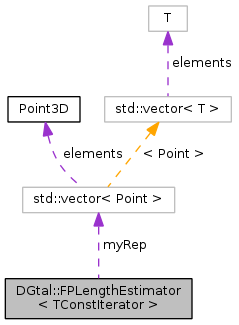

Collaboration diagram for DGtal::FPLengthEstimator< TConstIterator >:

Public Types
typedef TConstIterator	ConstIterator
typedef double	Quantity
typedef FP< ConstIterator, int, 4 >	FaithfulPolygon
typedef FaithfulPolygon::Point	Point
typedef FaithfulPolygon::Vector	Vector

Public Member Functions
	FPLengthEstimator ()
	~FPLengthEstimator ()
void	init (const double h, const ConstIterator &itb, const ConstIterator &ite, const bool &isClosed)
Quantity	eval () const
void	selfDisplay (std::ostream &out) const
bool	isValid () const

Private Member Functions
	FPLengthEstimator (const FPLengthEstimator &other)
FPLengthEstimator &	operator= (const FPLengthEstimator &other)

Private Attributes
double	myH
std::vector< Point >	myRep
bool	myIsInitBefore

---

Detailed Description

template<typename TConstIterator>
class DGtal::FPLengthEstimator< TConstIterator >

Aim: a model of CGlobalCurveEstimator that computes the length of a digital curve using its FP (faithful polygon)

Description of template class 'FPLengthEstimator'

Model of CGlobalCurveGeometricEstimator.

Template Parameters:

TConstIterator

a model of CConstIteratorOnPoints.

Definition at line 69 of file FPLengthEstimator.h.

---

Member Typedef Documentation

template<typename TConstIterator>

typedef TConstIterator DGtal::FPLengthEstimator< TConstIterator >::ConstIterator

Todo:

CONCEPT CHECK sur ConstIterator

Definition at line 76 of file FPLengthEstimator.h.

template<typename TConstIterator>

typedef FP<ConstIterator,int,4> DGtal::FPLengthEstimator< TConstIterator >::FaithfulPolygon

Definition at line 80 of file FPLengthEstimator.h.

template<typename TConstIterator>

typedef FaithfulPolygon::Point DGtal::FPLengthEstimator< TConstIterator >::Point

Definition at line 81 of file FPLengthEstimator.h.

template<typename TConstIterator>

typedef double DGtal::FPLengthEstimator< TConstIterator >::Quantity

Definition at line 78 of file FPLengthEstimator.h.

template<typename TConstIterator>

typedef FaithfulPolygon::Vector DGtal::FPLengthEstimator< TConstIterator >::Vector

Definition at line 82 of file FPLengthEstimator.h.

---

Constructor & Destructor Documentation

template<typename T >

DGtal::FPLengthEstimator< T >::FPLengthEstimator ( )

inline

Default Constructor.

Constructor.

Definition at line 49 of file FPLengthEstimator.ih.

{
  myIsInitBefore = false;
}

template<typename T >

DGtal::FPLengthEstimator< T >::~FPLengthEstimator ( )

inline

Destructor.

Definition at line 59 of file FPLengthEstimator.ih.

{
}

template<typename TConstIterator>

DGtal::FPLengthEstimator< TConstIterator >::FPLengthEstimator ( const FPLengthEstimator< TConstIterator > &  other )

private

Copy constructor.

Parameters:

other

the object to clone. Forbidden by default.

---

Member Function Documentation

template<typename T >

DGtal::FPLengthEstimator< T >::Quantity DGtal::FPLengthEstimator< T >::eval ( ) const

inline

Computation of the l1 length of the curve. Complexity: O(|Range|)

Precondition:

init() method must be called before.

Returns:

the curve length.

Definition at line 92 of file FPLengthEstimator.ih.

References DGtal::PointVector< dim, TEuclideanRing >::norm().

{
  ASSERT(myH > 0);
  ASSERT(myIsInitBefore);

  Quantity val = 0;

  if (myRep.size() > 1) {

    typename std::vector<Point>::const_iterator i = myRep.begin();
    typename std::vector<Point>::const_iterator j = i;
    ++j;
    for ( ; j != myRep.end(); ++i, ++j) {
      Vector v( *j - *i );
      val += v.norm(Vector::L_2);
    }

  }

  return val*myH;
}

template<typename T >

void DGtal::FPLengthEstimator< T >::init ( const double  h, const ConstIterator &  itb, const ConstIterator &  ite, const bool &  isClosed  )

inline

Initialize the measure computation.

Parameters:

h	grid size (must be >0).
itb	begin iterator
ite	end iterator
closed	true if the input range is closed.

Definition at line 73 of file FPLengthEstimator.ih.

References DGtal::FP< TIterator, TInteger, connectivity >::copyFP(), and DGtal::FP< TIterator, TInteger, connectivity >::size().

{
  myH = h;
  myIsInitBefore = true;
  myRep.clear();

  FaithfulPolygon fp( itb, ite, isClosed );
  myRep.resize( fp.size() );
  fp.copyFP( myRep.begin() );

  if ( (isClosed)&&(myRep.size()!=0) )
    myRep.push_back(myRep.front());

}

template<typename T >

bool DGtal::FPLengthEstimator< T >::isValid ( ) const

inline

Checks the validity/consistency of the object.

Returns:

'true' if the object is valid, 'false' otherwise.

Definition at line 141 of file FPLengthEstimator.ih.

{
    return myIsInitBefore;
}

template<typename TConstIterator>

FPLengthEstimator& DGtal::FPLengthEstimator< TConstIterator >::operator= ( const FPLengthEstimator< TConstIterator > &  other )

private

Assignment.

Parameters:

other

the object to copy.

Returns:

a reference on 'this'. Forbidden by default.

template<typename T >

void DGtal::FPLengthEstimator< T >::selfDisplay ( std::ostream &  out ) const

inline

Writes/Displays the object on an output stream.

Parameters:

out	the output stream where the object is written.

Definition at line 125 of file FPLengthEstimator.ih.

{
  out << "[FPLengthEstimator]";
  if (myIsInitBefore)
    out <<" myH="<<myH;
  else
    out<< " not initialized";
}

---

Field Documentation

template<typename TConstIterator>

double DGtal::FPLengthEstimator< TConstIterator >::myH

private

Grid size.

Definition at line 136 of file FPLengthEstimator.h.

template<typename TConstIterator>

bool DGtal::FPLengthEstimator< TConstIterator >::myIsInitBefore

private

Boolean to make sure that init() has been called before eval().

Definition at line 142 of file FPLengthEstimator.h.

template<typename TConstIterator>

std::vector<Point> DGtal::FPLengthEstimator< TConstIterator >::myRep

private

polygonal representation of the input

Definition at line 139 of file FPLengthEstimator.h.

---

The documentation for this class was generated from the following files:

• FPLengthEstimator.h
• FPLengthEstimator.ih
