#include <ModuloComputer.h>

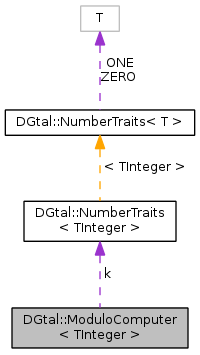

Collaboration diagram for DGtal::ModuloComputer< TInteger >:

Public Types
typedef NumberTraits< TInteger > ::SignedVersion	Integer
typedef NumberTraits< Integer > ::ParamType	IntegerParamType
typedef NumberTraits< TInteger > ::UnsignedVersion	UnsignedInteger
typedef NumberTraits < UnsignedInteger >::ParamType	UnsignedIntegerParamType

Public Member Functions
	BOOST_CONCEPT_ASSERT ((CInteger< Integer >))
	BOOST_CONCEPT_ASSERT ((CUnsignedInteger< UnsignedInteger >))
	ModuloComputer (UnsignedIntegerParamType m)
void	increment (UnsignedInteger &i) const
void	decrement (UnsignedInteger &i) const
UnsignedInteger	next (UnsignedIntegerParamType i) const
UnsignedInteger	previous (UnsignedIntegerParamType i) const
UnsignedInteger	cast (IntegerParamType i) const
bool	less (UnsignedIntegerParamType i, UnsignedIntegerParamType j) const
UnsignedInteger	posDiff (UnsignedIntegerParamType j, UnsignedIntegerParamType i) const
void	selfDisplay (std::ostream &out) const
bool	isValid () const

Protected Member Functions
	ModuloComputer ()

Private Member Functions
	ModuloComputer (const ModuloComputer &other)
ModuloComputer &	operator= (const ModuloComputer &other)

Private Attributes
UnsignedInteger	k

Detailed Description

template<typename TInteger>
class DGtal::ModuloComputer< TInteger >

implements basic functions on modular arithmetic.

Description of template class 'ModuloComputer'

Template Parameters:

TInteger type of integer.

Example:

       ...
       //Construct an arithmetic modulo 15
       // Note that MyInteger must be a model of the concept CInteger
       ModuloComputer<MyInteger> modular(15);
       typedef MyInteger::UnsignedVersion myUnsignedInteger;

       myUnsignedInteger a;

       a = modular.cast( 2 );   //a contains the value 2
       a = modular.cast( -1 );  //a contains the value 14
       modular.increment( a ); //a contains the value 0
       ...

Definition at line 80 of file ModuloComputer.h.

Member Typedef Documentation

template<typename TInteger>

typedef NumberTraits<TInteger>::SignedVersion DGtal::ModuloComputer< TInteger >::Integer

Definition at line 83 of file ModuloComputer.h.

template<typename TInteger>

typedef NumberTraits<Integer>::ParamType DGtal::ModuloComputer< TInteger >::IntegerParamType

Definition at line 84 of file ModuloComputer.h.

template<typename TInteger>

typedef NumberTraits<TInteger>::UnsignedVersion DGtal::ModuloComputer< TInteger >::UnsignedInteger

Definition at line 86 of file ModuloComputer.h.

template<typename TInteger>

typedef NumberTraits<UnsignedInteger>::ParamType DGtal::ModuloComputer< TInteger >::UnsignedIntegerParamType

Definition at line 87 of file ModuloComputer.h.

Constructor & Destructor Documentation

template<typename T >

DGtal::ModuloComputer< T >::ModuloComputer ( UnsignedIntegerParamType m )

inline

Initializes the modulo computer with the value [m].

Parameters:

m	any non-zero integer.

Definition at line 48 of file ModuloComputer.ih.

  : k( m )
{
}

template<typename TInteger>

DGtal::ModuloComputer< TInteger >::ModuloComputer ( )

protected

Constructor. Forbidden by default (protected to avoid g++ warnings).

template<typename TInteger>

DGtal::ModuloComputer< TInteger >::ModuloComputer ( const ModuloComputer< TInteger > & other )

private

Copy constructor.

Parameters:

other the object to clone. Forbidden by default.

Member Function Documentation

template<typename TInteger>

DGtal::ModuloComputer< TInteger >::BOOST_CONCEPT_ASSERT ( (CInteger< Integer >) )

template<typename TInteger>

DGtal::ModuloComputer< TInteger >::BOOST_CONCEPT_ASSERT ( (CUnsignedInteger< UnsignedInteger >) )

template<typename T >

DGtal::ModuloComputer< T >::UnsignedInteger DGtal::ModuloComputer< T >::cast ( IntegerParamType i ) const

inline

Parameters:

i	any integer value.

Returns:: the value of [i] modulo [k]. NB: O ( i/k ) operation.

Parameters:

i	any integer value.

Returns:: the value of [i] modulo [k].

Definition at line 119 of file ModuloComputer.ih.

Referenced by DGtal::OrderedAlphabet::duvalPPMod().

{
  Integer tmp = i;
  while ( tmp < 0 ) tmp += k;
  UnsignedInteger ip = (Integer) tmp;
  while ( ip >= k ) ip -= k;
  return ip;
}

template<typename T >

void DGtal::ModuloComputer< T >::decrement ( UnsignedInteger & i ) const

inline

Decrement the value [i] modulo.

Parameters:

i	any value between 0 and [k] (excluded).

Definition at line 78 of file ModuloComputer.ih.

Referenced by DGtal::FreemanChain< TInteger >::cleanOuterSpikes().

{
  if ( i == 0 ) i = k;
  --i;
}

template<typename T >

void DGtal::ModuloComputer< T >::increment ( UnsignedInteger & i ) const

inline

Increment the value [i] modulo.

Parameters:

i	any value between 0 and [k] (excluded).

Definition at line 65 of file ModuloComputer.ih.

Referenced by DGtal::FreemanChain< TInteger >::cleanOuterSpikes(), DGtal::OrderedAlphabet::duvalPPMod(), and DGtal::OrderedAlphabet::firstLyndonFactorMod().

{
  if ( ++i == k ) i = 0;
}

template<typename T >

bool DGtal::ModuloComputer< T >::isValid ( ) const

inline

Checks the validity/consistency of the object.

Returns:: 'true' if the object is valid, 'false' otherwise.

Definition at line 186 of file ModuloComputer.ih.

{
    return true;
}

template<typename T >

bool DGtal::ModuloComputer< T >::less	(	UnsignedIntegerParamType	i,
		UnsignedIntegerParamType	j
	)		const

inline

Less comparator modulo. Be careful, modulo comparisons have no sense when the absolute difference of the values are around k / 2.

Parameters:

i	any value between 0 and [k] (excluded).
j	any value between 0 and [k] (excluded).

Returns:: 'true' if [i] strictly precedes [j] in a window 'floor([k]/2)'.

Less comparator modulo. Be careful, modulo comparisons have no sense when the absolute difference of the values are around k / 2.

Parameters:

i	any value between 0 and [k] (excluded).
j	any value between 0 and [k] (excluded).

Returns:: 'true' if [i] strictly precedes [j] in a window 'floor([k]/2)'.

See also:: k

Definition at line 140 of file ModuloComputer.ih.

{
  Integer d = ( (T) j ) - ( (T) i );
  if ( d > 0 )
    return d < (T) ( k / 2 );
  else
    return (-d) >= (T) ( k / 2 );
}

template<typename T >

DGtal::ModuloComputer< T >::UnsignedInteger DGtal::ModuloComputer< T >::next ( UnsignedIntegerParamType i ) const

inline

Parameters:

i	any value between 0 and [k] (excluded).

Returns:: the incremented value of [i] modulo [k].

Definition at line 92 of file ModuloComputer.ih.

{

  return ( (i+1) == k ) ? 0 : (i+1);
}

template<typename TInteger>

ModuloComputer& DGtal::ModuloComputer< TInteger >::operator= ( const ModuloComputer< TInteger > & other )

private

Assignment.

Parameters:

other the object to copy.

Returns:: a reference on 'this'. Forbidden by default.

template<typename T >

DGtal::ModuloComputer< T >::UnsignedInteger DGtal::ModuloComputer< T >::posDiff	(	UnsignedIntegerParamType	j,
		UnsignedIntegerParamType	i
	)		const

inline

Performs j - i modulo, assuming less(i,j) is true.

Parameters:

j	any value between 0 and [k] (excluded).
i	any value between 0 and [k] (excluded).

Returns:: the value j - i, always positive.

Definition at line 160 of file ModuloComputer.ih.

{
  return ( i <= j ) ? j - i : j + k - i;
}

template<typename T >

DGtal::ModuloComputer< T >::UnsignedInteger DGtal::ModuloComputer< T >::previous ( UnsignedIntegerParamType i ) const

inline

Parameters:

i	any value between 0 and [k] (excluded).

Returns:: the decremented value of [i] modulo [k].

Definition at line 106 of file ModuloComputer.ih.

Referenced by DGtal::AngleLinearMinimizer::getEnergy(), DGtal::AngleLinearMinimizer::getFormerEnergy(), DGtal::AngleLinearMinimizer::getFormerGradient(), DGtal::AngleLinearMinimizer::getGradient(), DGtal::AngleLinearMinimizer::oneStep(), and DGtal::AngleLinearMinimizerByRelaxation::oneStep().

{
  return ( i == 0 ) ? k - 1 : i - 1;
}

template<typename T >

void DGtal::ModuloComputer< T >::selfDisplay ( std::ostream & out ) const

inline

Writes/Displays the object on an output stream.

Parameters:

out	the output stream where the object is written.

Definition at line 174 of file ModuloComputer.ih.

{
  out << "[ModuloComputer]";
}

Field Documentation

template<typename TInteger>

UnsignedInteger DGtal::ModuloComputer< TInteger >::k

private

Modulo of all computations.

Definition at line 166 of file ModuloComputer.h.
