DGtal::RandomColorMap Class Reference

#include <RandomColorMap.h>

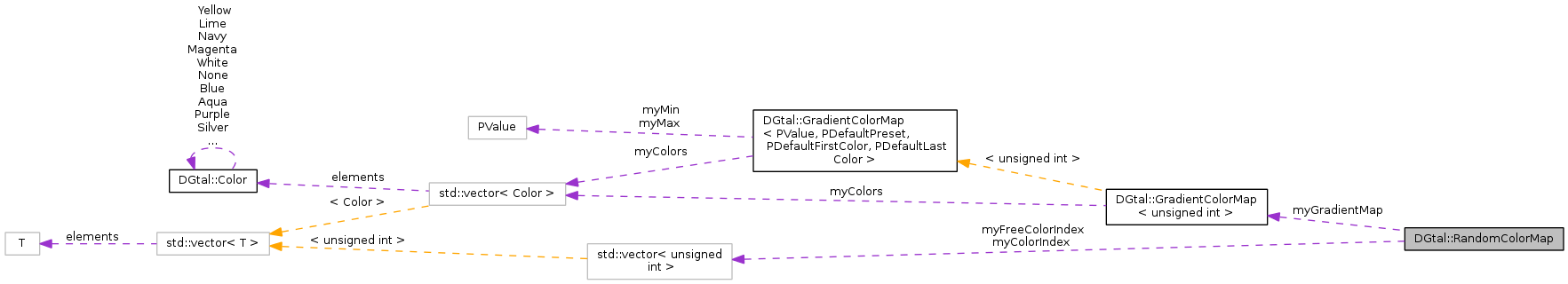

Collaboration diagram for DGtal::RandomColorMap:

Public Types
typedef unsigned int	Value

Public Member Functions
	RandomColorMap (const RandomColorMap &other)
RandomColorMap &	operator= (const RandomColorMap &anOther)
	RandomColorMap (const unsigned int &aFirstIndex, const unsigned int &aLastIndex, const Color &aFirstColor=Color::White, const Color &aLastColor=Color::Red)
void	addColor (const Color &aColor)
Color	operator() (const unsigned int &aValue) const
const unsigned int &	min () const
const unsigned int &	max () const
	~RandomColorMap ()
void	selfDisplay (std::ostream &out) const
bool	isValid () const

Protected Member Functions
	RandomColorMap ()

Protected Attributes
unsigned int	myMin
unsigned int	myMax

Private Member Functions
void	associateRandomIndexColor ()

Private Attributes
GradientColorMap< unsigned int > *	myGradientMap
std::vector< unsigned int >	myColorIndex
std::vector< unsigned int >	myFreeColorIndex

---

Detailed Description

Aim: access to random color from a gradientColorMap.

Description of class 'RandomColorMap'

Definition at line 59 of file RandomColorMap.h.

---

Member Typedef Documentation

typedef unsigned int DGtal::RandomColorMap::Value

Definition at line 65 of file RandomColorMap.h.

---

Constructor & Destructor Documentation

DGtal::RandomColorMap::RandomColorMap

(

const RandomColorMap &

other

)

Copy constructor.

Parameters:

other

the object to clone. Forbidden by default.

DGtal::RandomColorMap::RandomColorMap ( const unsigned int &  aFirstIndex, const unsigned int &  aLastIndex, const Color &  aFirstColor = Color::White, const Color &  aLastColor = Color::Red  )

inline

Constructor from two unsigned intergers and two Colors.

Definition at line 47 of file RandomColorMap.ih.

References DGtal::GradientColorMap< PValue, PDefaultPreset, PDefaultFirstColor, PDefaultLastColor >::addColor(), associateRandomIndexColor(), myGradientMap, myMax, and myMin.

{
  myMin = aFirstIndex;
  myMax  = aLastIndex;
  myGradientMap = new GradientColorMap<unsigned int> (aFirstIndex, aLastIndex);
  myGradientMap->addColor(aFirstColor);
  myGradientMap->addColor(aLastColor);
  associateRandomIndexColor();
}

DGtal::RandomColorMap::~RandomColorMap ( )

inline

Destructor.

Definition at line 78 of file RandomColorMap.ih.

{
  delete myGradientMap;
}

DGtal::RandomColorMap::RandomColorMap ( )

protected

Constructor. Forbidden by default (protected to avoid g++ warnings).

---

Member Function Documentation

void DGtal::RandomColorMap::addColor ( const Color &  aColor )

inline

Adds a color to the list of color steps.

Parameters:

color

A color.

Definition at line 87 of file RandomColorMap.ih.

{
  myGradientMap->addColor(aColor);
  associateRandomIndexColor();
}

void DGtal::RandomColorMap::associateRandomIndexColor ( )

inlineprivate

Definition at line 62 of file RandomColorMap.ih.

Referenced by RandomColorMap().

                                              {
  for(unsigned int i=myMin; i<=myMax; i++){
    myColorIndex.push_back(myMax+1);
    myFreeColorIndex.push_back(i);
  }
  unsigned int i=0;
  while(myFreeColorIndex.size()!=0){
    unsigned int pos = rand()%myFreeColorIndex.size();
    myColorIndex[i]=myFreeColorIndex.at(pos);
    myFreeColorIndex.erase(myFreeColorIndex.begin()+pos);
    i++;
  }

}

bool DGtal::RandomColorMap::isValid ( ) const

inline

Checks the validity/consistency of the object.

Returns:

'true' if the object is valid, 'false' otherwise.

Definition at line 103 of file RandomColorMap.ih.

{
    return true;
}

const unsigned int & DGtal::RandomColorMap::max ( ) const

inline

Returns the upper bound of the value range.

Returns:

The upper bound of the value range.

Definition at line 140 of file RandomColorMap.ih.

{
  return myMax;
}

const unsigned int & DGtal::RandomColorMap::min ( ) const

inline

Returns the lower bound of the value range.

Returns:

The lower bound of the value range.

Definition at line 133 of file RandomColorMap.ih.

{
  return myMin;
}

Color DGtal::RandomColorMap::operator() ( const unsigned int &  aValue ) const

inline

Computes the color associated with a value in a given range.

Parameters:

value

A value within the value range.

Returns:

A random color identified by an unique [aValue] within the current range.

Definition at line 125 of file RandomColorMap.ih.

{
  return (*myGradientMap)(myColorIndex.at(aValue));
}

DGtal::RandomColorMap & DGtal::RandomColorMap::operator= ( const RandomColorMap &  anOther )

inline

Assignment.

Parameters:

other

the object to copy.

Returns:

a reference on 'this'. Forbidden by default.

Definition at line 111 of file RandomColorMap.ih.

References myColorIndex, myFreeColorIndex, myMax, and myMin.

{
if ( &anOther != this ) {
    myMin = anOther.myMin;
    myMax = anOther.myMax;
    myColorIndex = anOther.myColorIndex;
    myFreeColorIndex= anOther.myFreeColorIndex;
    myGradientMap = new GradientColorMap<unsigned int> (myMin, myMax);
 }
  return *this;
}

void DGtal::RandomColorMap::selfDisplay ( std::ostream &  out ) const

inline

Writes/Displays the object on an output stream.

Parameters:

out	the output stream where the object is written.

Definition at line 95 of file RandomColorMap.ih.

{
    out << "[RandomColorMap]";
}

---

Field Documentation

std::vector<unsigned int> DGtal::RandomColorMap::myColorIndex

private

Definition at line 161 of file RandomColorMap.h.

Referenced by operator=().

std::vector<unsigned int> DGtal::RandomColorMap::myFreeColorIndex

private

Definition at line 162 of file RandomColorMap.h.

Referenced by operator=().

GradientColorMap<unsigned int>* DGtal::RandomColorMap::myGradientMap

private

Definition at line 160 of file RandomColorMap.h.

Referenced by RandomColorMap().

unsigned int DGtal::RandomColorMap::myMax

protected

The lower bound of the value range.

Definition at line 153 of file RandomColorMap.h.

Referenced by operator=(), and RandomColorMap().

unsigned int DGtal::RandomColorMap::myMin

protected

The lower bound of the value range.

Definition at line 152 of file RandomColorMap.h.

Referenced by operator=(), and RandomColorMap().

---

The documentation for this class was generated from the following files:

• RandomColorMap.h
• RandomColorMap.ih
