#include <SegmentComputerEstimators.h>

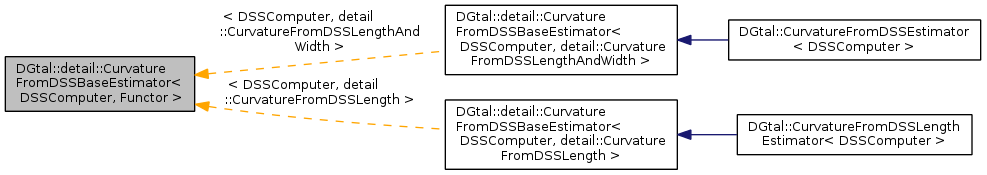

Inheritance diagram for DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >:

Collaboration diagram for DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >:

Public Types
typedef DSSComputer	SegmentComputer
typedef DSSComputer::ConstIterator	ConstIterator
typedef double	Quantity

Public Member Functions
	BOOST_CONCEPT_ASSERT ((CUnaryFunctor< Functor, SegmentComputer, Quantity >))
	CurvatureFromDSSBaseEstimator ()
	CurvatureFromDSSBaseEstimator (const CurvatureFromDSSBaseEstimator &other)
CurvatureFromDSSBaseEstimator &	operator= (const CurvatureFromDSSBaseEstimator &other)
	~CurvatureFromDSSBaseEstimator ()
bool	isValid () const
void	init (const double h, const ConstIterator &itb, const ConstIterator &ite)
Quantity	eval (const ConstIterator &it)
template<typename OutputIterator >
OutputIterator	eval (const ConstIterator &itb, const ConstIterator &ite, OutputIterator result)
void	attach (const SegmentComputer &aSC)

Data Fields
double	myH
ConstIterator	myBegin
ConstIterator	myEnd
const SegmentComputer *	mySCPtr
Functor	myFunctor

Detailed Description

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>
class DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >

Description of class 'CurvatureFromDSSBaseEstimator'

Aim: computes a curvature quantity from the length and/or the width of a DSS.

Template Parameters:

DSSComputer a model of segment computer devoted to the DSS recognition.

The computation is delegated to a functor.

Template Parameters:

Functor a model of unary functor taking a DSS as input and returning a double

This class is a model of CSegmentComputerEstimator

Definition at line 1309 of file SegmentComputerEstimators.h.

Member Typedef Documentation

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

typedef DSSComputer::ConstIterator DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::ConstIterator

Definition at line 1316 of file SegmentComputerEstimators.h.

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

typedef double DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::Quantity

Definition at line 1317 of file SegmentComputerEstimators.h.

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

typedef DSSComputer DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::SegmentComputer

Definition at line 1315 of file SegmentComputerEstimators.h.

Constructor & Destructor Documentation

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::CurvatureFromDSSBaseEstimator ( )

inline

Default constructor. NB: not valid.

Definition at line 1351 of file SegmentComputerEstimators.h.

        : myH( 0.0 ), myBegin(), myEnd(), mySCPtr(0), myFunctor()
      {
      }

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::CurvatureFromDSSBaseEstimator ( const CurvatureFromDSSBaseEstimator< DSSComputer, Functor > & other )

inline

Copy constructor.

Parameters:

other the object to copy.

Definition at line 1359 of file SegmentComputerEstimators.h.

        : myH( other.myH ), myBegin( other.myBegin ), myEnd( other.myEnd ),
          mySCPtr( other.mySCPtr ), myFunctor( other.myFunctor )
      {
      }

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::~CurvatureFromDSSBaseEstimator ( )

inline

Destructor

Definition at line 1383 of file SegmentComputerEstimators.h.

{}

Member Function Documentation

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

void DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::attach ( const SegmentComputer & aSC )

inline

Attach the estimator to aSC

Parameters:

aSC	an instance of segment computer.

Definition at line 1525 of file SegmentComputerEstimators.h.

      {
        mySCPtr = &aSC;
        ASSERT( mySCPtr );
      };

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::BOOST_CONCEPT_ASSERT ( (CUnaryFunctor< Functor, SegmentComputer, Quantity >) )

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

Quantity DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::eval ( const ConstIterator & it )

inline

Unique estimation

Parameters:

it	any iterator

Returns:: the estimated quantity

Definition at line 1416 of file SegmentComputerEstimators.h.

Referenced by DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::eval().

      {
        ASSERT( isValid() );
        //types
        typedef typename DSSComputer::Integer Integer;
        typedef typename DSSComputer::Vector Vector;
        //curvature value
        Quantity k = 0;
        //begin and end iterators
        //(back point on the first point)
        //(front point on the last point)
        ConstIterator back = mySCPtr->begin();
        ConstIterator front = mySCPtr->end();
        bool isConnectedAtBack = isNotEmpty(myBegin, back)
          &&((*boost::prior(back)-*back).norm(Vector::L1) <= NumberTraits<Integer>::ONE);
        bool isConnectedAtFront = isNotEmpty(front, myEnd)
          &&((*boost::prior(front)-*front).norm(Vector::L1) <= NumberTraits<Integer>::ONE);

        if (isConnectedAtBack) {
          if (isConnectedAtFront) {
            --back;
            //parameters
            Integer mu = mySCPtr->getMu();
            Integer omega = mySCPtr->getOmega();
            //cases
            if ( (mySCPtr->getRemainder(*back)<=mu-1)&&
                 (mySCPtr->getRemainder(*front)<=mu-1) ) {                //convex
              k = myFunctor(*mySCPtr) / myH;
            } else if ( (mySCPtr->getRemainder(*back)>=mu+omega)&&
                        (mySCPtr->getRemainder(*front)>=mu+omega) ) {           //concave
              k = -myFunctor(*mySCPtr) / myH;
            } //else                                                  //inflection
          } else {
            --back;
            //parameters
            Integer mu = mySCPtr->getMu();
            Integer omega = mySCPtr->getOmega();
            //cases
            if ( (mySCPtr->getRemainder(*back)<=mu-1) ) {                //convex
              k = myFunctor(*mySCPtr) / myH;
            } else if ( (mySCPtr->getRemainder(*back)>=mu+omega) ) {     //concave
              k = -myFunctor(*mySCPtr) / myH;
            } //else                                                 //inflection
          }
        } else if (isConnectedAtFront) {
          //parameters
          Integer mu = mySCPtr->getMu();
          Integer omega = mySCPtr->getOmega();
          //cases
          if ( (mySCPtr->getRemainder(*front)<=mu-1) ) {                //convex
            k = myFunctor(*mySCPtr) / myH;
          } else if ( (mySCPtr->getRemainder(*front)>=mu+omega) ) {     //concave
            k = -myFunctor(*mySCPtr) / myH;
          } //else                                                  //inflection
        } //else cannot be extended: k is set to 0
        return k;
      }

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

template<typename OutputIterator >

OutputIterator DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::eval	(	const ConstIterator &	itb,
		const ConstIterator &	ite,
		OutputIterator	result
	)

inline

Estimation for a subrange [itb , ite )

Parameters:

itb	subrange begin iterator
ite	subrange end iterator
result	output iterator on the estimated quantity

Returns:: the estimated quantity from itb till ite (excluded)

Definition at line 1502 of file SegmentComputerEstimators.h.

      {
        ASSERT( isValid() );
        // do-while loop to deal with the case of a whole circular range
        if (isNotEmpty(itb, ite))
          {
            ConstIterator it = itb;
            do
              {
                *result++ = eval( it );
                ++it;
              } while (it != ite);
          }
        return result;
      }

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

void DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::init	(	const double	h,
		const ConstIterator &	itb,
		const ConstIterator &	ite
	)

inline

Initialisation.

Parameters:

h	grid size
itb,begin	iterator
ite,end	iterator

Definition at line 1403 of file SegmentComputerEstimators.h.

      {
        myH = h;
        myBegin = itb;
        myEnd = ite;
        ASSERT( myH > 0 );
      }

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

bool DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::isValid ( ) const

inline

Checks the validity/consistency of the object.

Returns:: 'true' if the object is valid, 'false' otherwise.

Definition at line 1389 of file SegmentComputerEstimators.h.

Referenced by DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::eval().

      {
        return (myH > 0)&&(mySCPtr != 0);
      };

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

CurvatureFromDSSBaseEstimator& DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::operator= ( const CurvatureFromDSSBaseEstimator< DSSComputer, Functor > & other )

inline

Assignement.

Parameters:

other the object to copy.

Definition at line 1368 of file SegmentComputerEstimators.h.

      {
        if (this != &other)
          {
            myH = other.myH;
            myBegin = other.myBegin;
            myEnd = other.myEnd;
            mySCPtr = other.mySCPtr;
            myFunctor = other.myFunctor;
          }
        return *this;
      }

Field Documentation

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

ConstIterator DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::myBegin

Begin iterator

Definition at line 1330 of file SegmentComputerEstimators.h.

Referenced by DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::eval(), DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::init(), and DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::operator=().

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

ConstIterator DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::myEnd

End iterator

Definition at line 1334 of file SegmentComputerEstimators.h.

Referenced by DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::eval(), DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::init(), and DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::operator=().

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

Functor DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::myFunctor

Functor used for the estimation

Definition at line 1342 of file SegmentComputerEstimators.h.

Referenced by DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::eval(), and DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::operator=().

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

double DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::myH

Grid step

Definition at line 1326 of file SegmentComputerEstimators.h.

Referenced by DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::eval(), DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::init(), DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::isValid(), and DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::operator=().

template<typename DSSComputer, typename Functor = detail::CurvatureFromDSSLength>

const SegmentComputer* DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, Functor >::mySCPtr

Aliasing pointer on a constant segment computer

Definition at line 1338 of file SegmentComputerEstimators.h.

Referenced by DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::attach(), DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::eval(), DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::isValid(), and DGtal::detail::CurvatureFromDSSBaseEstimator< DSSComputer, detail::CurvatureFromDSSLength >::operator=().

The documentation for this class was generated from the following file:

SegmentComputerEstimators.h
