#include <CDomain.h>

Inheritance diagram for DGtal::CDomain< T >:

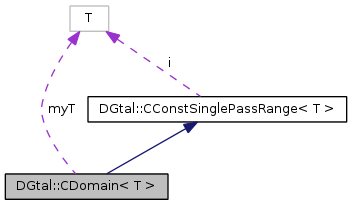

Collaboration diagram for DGtal::CDomain< T >:

Public Types
typedef T::Domain	Domain
typedef T::Space	Space
typedef T::Point	Point
typedef T::Vector	Vector
typedef T::Integer	Integer
typedef T::Size	Size
typedef T::Dimension	Dimension
typedef T::Predicate	Predicate
typedef T::ConstIterator	ConstIterator
Public Types inherited from DGtal::CConstSinglePassRange< T >

Public Member Functions
	BOOST_CONCEPT_USAGE (CDomain)
Public Member Functions inherited from DGtal::CConstSinglePassRange< T >
	BOOST_CONCEPT_ASSERT ((boost_concepts::SinglePassIteratorConcept< ConstIterator >))
	BOOST_CONCEPT_USAGE (CConstSinglePassRange)

Private Attributes
T	myT
Point	myP
Predicate	myPred
bool	myBool
Size	mySize
ConstIterator	myIt

Detailed Description

template<typename T>
struct DGtal::CDomain< T >

Aim: This concept represents a digital domain, i.e. a non mutable subset of points of the given digital space.

DescriptionDescription of concept 'CDomain'

Refinement of CConstSinglePassRange

Associated types :

Domain : the type itself of the CDomain model.
Space : the embedding digital space.
Point : the point type of the space
Size : the type used for counting elements of the space.
Dimension : the type used for indexing the dimension.
Vector : the vector type of the space
Predicate : the type of the predicate returning true for exactly the points of this domain.

Notation

X : A type that is a model of CDomain
x : Object of type X
p : Object of type Point

Definitions

Valid expressions and

Name	Expression	Type requirements	Return type	Precondition	Semantics	Postcondition	Complexity
lower bound	x.lowerBound()		const Point &		return the infimum of all points of the domain.		O(1)
upper bound	x.upperBound()		const Point &		return the supremum of all points of the domain.		O(1)
inside domain test	x.isInside( p )		`bool`		return 'true' whenever `p` is in the domain.
inside domain predicate object	x.predicate()		const Predicate &		return a reference to the predicate object equivalent to the isInside(p) test.
size	x.size()		Size		return the number of points lying in the domain.		O(1)
iterator from point	x.begin(p)		ConstIterator		return a ConstIterator on the domain starting from the point p.

Invariants###

Models### HyperRectDomain, DigitalSetDomain

Notes###

Todo:: Complete domain checking.

Definition at line 128 of file CDomain.h.

Member Typedef Documentation

template<typename T >

typedef T::ConstIterator DGtal::CDomain< T >::ConstIterator

Reimplemented from DGtal::CConstSinglePassRange< T >.

Definition at line 140 of file CDomain.h.

template<typename T >

typedef T::Dimension DGtal::CDomain< T >::Dimension

Definition at line 138 of file CDomain.h.

template<typename T >

typedef T::Domain DGtal::CDomain< T >::Domain

Definition at line 132 of file CDomain.h.

template<typename T >

typedef T::Integer DGtal::CDomain< T >::Integer

Definition at line 136 of file CDomain.h.

template<typename T >

typedef T::Point DGtal::CDomain< T >::Point

Definition at line 134 of file CDomain.h.

template<typename T >

typedef T::Predicate DGtal::CDomain< T >::Predicate

Definition at line 139 of file CDomain.h.

template<typename T >

typedef T::Size DGtal::CDomain< T >::Size

Definition at line 137 of file CDomain.h.

template<typename T >

typedef T::Space DGtal::CDomain< T >::Space

Definition at line 133 of file CDomain.h.

template<typename T >

typedef T::Vector DGtal::CDomain< T >::Vector

Definition at line 135 of file CDomain.h.

Member Function Documentation

template<typename T >

DGtal::CDomain< T >::BOOST_CONCEPT_USAGE ( CDomain< T > )

inline

Definition at line 142 of file CDomain.h.

References DGtal::CDomain< T >::myBool, DGtal::CDomain< T >::myIt, DGtal::CDomain< T >::myP, DGtal::CDomain< T >::myPred, DGtal::CDomain< T >::mySize, DGtal::CDomain< T >::myT, and DGtal::ConceptUtils::sameType().

    {
      // Domain should have a lowerBound() returning a Point.
      ConceptUtils::sameType( myP, myT.lowerBound() );
      // Domain should have an upperBound() returning a Point.
      ConceptUtils::sameType( myP, myT.upperBound() );
      // Domain should have a size() returning a Size.
      ConceptUtils::sameType( mySize, myT.size() );
      // Domain should have a isInside(p) returning a bool.
      ConceptUtils::sameType( myBool, myT.isInside( myP ) );
      // Domain should have a predicate() returning a Predicate.
      ConceptUtils::sameType( myPred, myT.predicate() );
      // Domain should have a begin(Point) method returning an
      // ConstIterator starting from Point
      ConceptUtils::sameType( myIt, myT.begin(myP) );
    }
