DGtal::CustomColors Struct Reference

#include <Board2D.h>

Inheritance diagram for DGtal::CustomColors:

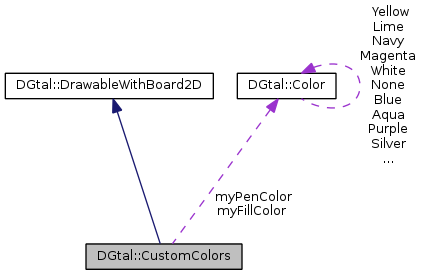

Collaboration diagram for DGtal::CustomColors:

Public Member Functions
	CustomColors (const Color &penColor, const Color &fillColor)
virtual void	setStyle (Board2D &aboard) const

Data Fields
Color	myPenColor
Color	myFillColor

---

Detailed Description

Custom style class redefining the pen color and the fill color. You may use Board2D::Color::None for transparent color.

   Board2D board;
   board << CustomColors( Board2D::Color::Red, Board2D::Color::None );
   ...

See also:

Board2D

Examples:

arithmetic/lower-integer-convex-hull.cpp, io/boards/dgtalBoard2D-3-custom-classes.cpp, io/boards/dgtalBoard2D-4-colormaps.cpp, topology/ctopo-1.cpp, and topology/ctopo-2.cpp.

Definition at line 291 of file Board2D.h.

---

Constructor & Destructor Documentation

DGtal::CustomColors::CustomColors ( const Color &  penColor, const Color &  fillColor  )

inline

Constructor.

Parameters:

penColor	specifies the pen color.
fillColor	specifies the fill color.

Definition at line 302 of file Board2D.h.

      : myPenColor( penColor ), myFillColor( fillColor )
    {}

---

Member Function Documentation

virtual void DGtal::CustomColors::setStyle ( Board2D &  ) const

inlinevirtual

Operation to override. Does nothing by default.

Parameters:

board

any object of type Board.

Reimplemented from DGtal::DrawableWithBoard2D.

Definition at line 307 of file Board2D.h.

References myFillColor, myPenColor, LibBoard::Board::setFillColor(), and LibBoard::Board::setPenColor().

    {
      aboard.setFillColor( myFillColor);
      aboard.setPenColor( myPenColor );
    }

---

Field Documentation

Color DGtal::CustomColors::myFillColor

Definition at line 294 of file Board2D.h.

Referenced by setStyle().

Color DGtal::CustomColors::myPenColor

Definition at line 293 of file Board2D.h.

Referenced by setStyle().

---

The documentation for this struct was generated from the following file:

• Board2D.h
