#include <ArithmeticalDSS3d.h>

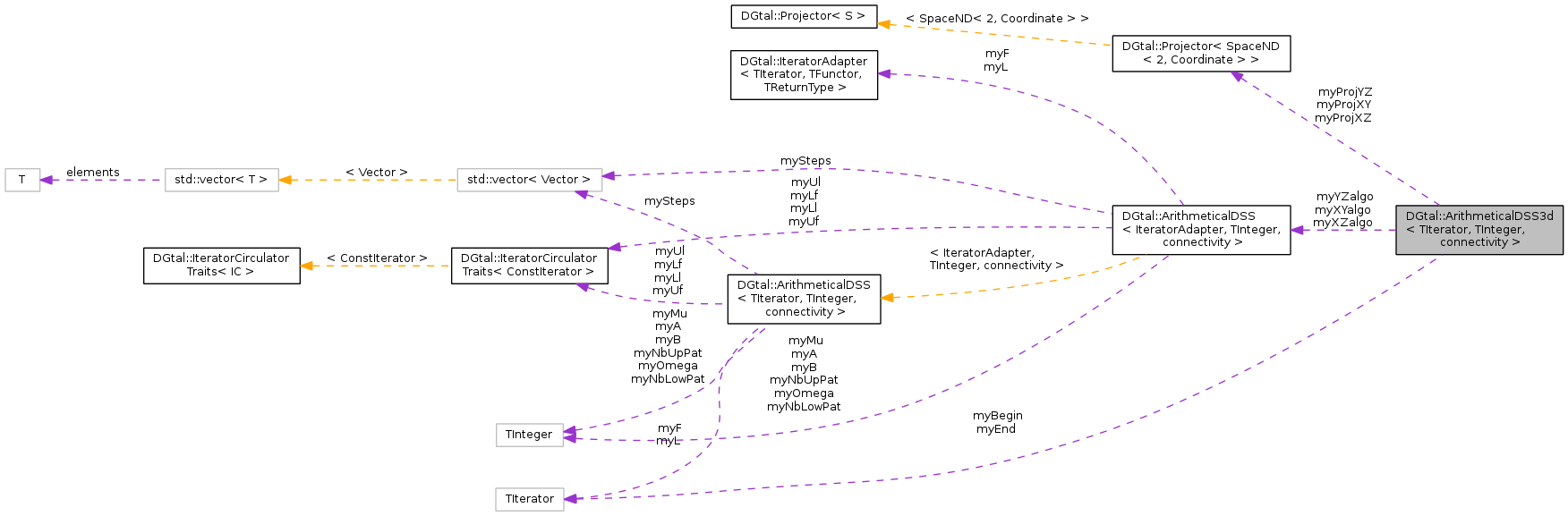

Collaboration diagram for DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >:

Public Types
typedef TInteger	Integer
typedef TIterator	ConstIterator
typedef ArithmeticalDSS3d < ConstIterator, TInteger, connectivity >	Self
typedef ArithmeticalDSS3d < ReverseIterator < ConstIterator >, TInteger, connectivity >	Reverse
typedef IteratorCirculatorTraits < ConstIterator >::Value	Point3d
typedef IteratorCirculatorTraits < ConstIterator >::Value	Vector3d
typedef Point3d::Coordinate	Coordinate
typedef DGtal::PointVector < 2, Coordinate >	Point2d
typedef DGtal::PointVector < 2, Coordinate >	Vector2d
typedef DGtal::PointVector < 2, double >	PointD2d
typedef DGtal::PointVector < 3, double >	PointD3d
typedef DGtal::PointVector < 3, double >	VectorD3d
typedef Projector< SpaceND < 2, Coordinate > >	Projector2d
typedef ConstIteratorAdapter < ConstIterator, Projector2d, Point2d >	IteratorAdapter
typedef DGtal::ArithmeticalDSS < IteratorAdapter, TInteger, connectivity >	ArithmeticalDSS2d

Public Member Functions
	BOOST_CONCEPT_ASSERT ((CInteger< TInteger >))
	ArithmeticalDSS3d ()
	ArithmeticalDSS3d (const ConstIterator &it)
void	init (const ConstIterator &it)
	ArithmeticalDSS3d (const ArithmeticalDSS3d &other)
ArithmeticalDSS3d &	operator= (const ArithmeticalDSS3d &other)
Self	getSelf () const
Reverse	getReverse () const
bool	operator== (const ArithmeticalDSS3d &other) const
bool	operator!= (const ArithmeticalDSS3d &other) const
	~ArithmeticalDSS3d ()
bool	extendForward ()
bool	isExtendableForward ()
void	getParameters (Vector3d &direction, PointD3d &intercept, PointD3d &thickness) const
bool	isValid () const
ConstIterator	begin () const
ConstIterator	end () const
std::string	className () const
void	selfDisplay (std::ostream &out)

Protected Attributes
Projector2d	myProjXY
Projector2d	myProjXZ
Projector2d	myProjYZ
ArithmeticalDSS2d	myXYalgo
ArithmeticalDSS2d	myXZalgo
ArithmeticalDSS2d	myYZalgo
ConstIterator	myBegin
ConstIterator	myEnd

Detailed Description

template<typename TIterator, typename TInteger, int connectivity>
class DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >

Aim: Dynamic recognition of a 3d-digital straight segment (DSS)

Description of class 'ArithmeticalDSS3d'

Definition at line 74 of file ArithmeticalDSS3d.h.

Member Typedef Documentation

template<typename TIterator, typename TInteger, int connectivity>

typedef DGtal::ArithmeticalDSS<IteratorAdapter,TInteger,connectivity> DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::ArithmeticalDSS2d

Definition at line 111 of file ArithmeticalDSS3d.h.

template<typename TIterator, typename TInteger, int connectivity>

typedef TIterator DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::ConstIterator

Definition at line 87 of file ArithmeticalDSS3d.h.

template<typename TIterator, typename TInteger, int connectivity>

typedef Point3d::Coordinate DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::Coordinate

Definition at line 95 of file ArithmeticalDSS3d.h.

template<typename TIterator, typename TInteger, int connectivity>

typedef TInteger DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::Integer

Definition at line 83 of file ArithmeticalDSS3d.h.

template<typename TIterator, typename TInteger, int connectivity>

typedef ConstIteratorAdapter<ConstIterator,Projector2d,Point2d> DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::IteratorAdapter

Definition at line 107 of file ArithmeticalDSS3d.h.

template<typename TIterator, typename TInteger, int connectivity>

typedef DGtal::PointVector<2,Coordinate> DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::Point2d

Definition at line 97 of file ArithmeticalDSS3d.h.

template<typename TIterator, typename TInteger, int connectivity>

typedef IteratorCirculatorTraits<ConstIterator>::Value DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::Point3d

Definition at line 93 of file ArithmeticalDSS3d.h.

template<typename TIterator, typename TInteger, int connectivity>

typedef DGtal::PointVector<2,double> DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::PointD2d

Definition at line 100 of file ArithmeticalDSS3d.h.

template<typename TIterator, typename TInteger, int connectivity>

typedef DGtal::PointVector<3,double> DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::PointD3d

Definition at line 101 of file ArithmeticalDSS3d.h.

template<typename TIterator, typename TInteger, int connectivity>

typedef Projector<SpaceND<2,Coordinate> > DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::Projector2d

Definition at line 105 of file ArithmeticalDSS3d.h.

template<typename TIterator, typename TInteger, int connectivity>

typedef ArithmeticalDSS3d<ReverseIterator<ConstIterator>,TInteger,connectivity> DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::Reverse

Definition at line 89 of file ArithmeticalDSS3d.h.

template<typename TIterator, typename TInteger, int connectivity>

typedef ArithmeticalDSS3d<ConstIterator,TInteger,connectivity> DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::Self

Definition at line 88 of file ArithmeticalDSS3d.h.

template<typename TIterator, typename TInteger, int connectivity>

typedef DGtal::PointVector<2,Coordinate> DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::Vector2d

Definition at line 98 of file ArithmeticalDSS3d.h.

template<typename TIterator, typename TInteger, int connectivity>

typedef IteratorCirculatorTraits<ConstIterator>::Value DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::Vector3d

Definition at line 94 of file ArithmeticalDSS3d.h.

template<typename TIterator, typename TInteger, int connectivity>

typedef DGtal::PointVector<3,double> DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::VectorD3d

Definition at line 102 of file ArithmeticalDSS3d.h.

Constructor & Destructor Documentation

template<typename TIterator , typename TInteger , int connectivity>

DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::ArithmeticalDSS3d ( )

inline

Default constructor. not valid

Definition at line 52 of file ArithmeticalDSS3d.ih.

{
  //projections
  std::vector<DGtal::Dimension> v1,v2,v3;
  v1.push_back(0);
  v1.push_back(1);
  v2.push_back(0);
  v2.push_back(2);
  v3.push_back(1);
  v3.push_back(2);

  myProjXY.init(v1.begin(),v1.end());
  myProjXZ.init(v2.begin(),v2.end());
  myProjYZ.init(v3.begin(),v3.end());
}

template<typename TIterator , typename TInteger , int connectivity>

DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::ArithmeticalDSS3d ( const ConstIterator & it )

inline

Constructor with initialisation

Parameters:

it	an iterator

See also:: init

Constructor with initialisation

Definition at line 75 of file ArithmeticalDSS3d.ih.

{
  //projections
  std::vector<DGtal::Dimension> v1,v2,v3;
  v1.push_back(0);
  v1.push_back(1);
  v2.push_back(0);
  v2.push_back(2);
  v3.push_back(1);
  v3.push_back(2);

  myProjXY.init(v1.begin(),v1.end());
  myProjXZ.init(v2.begin(),v2.end());
  myProjYZ.init(v3.begin(),v3.end());
  init(it);
}

template<typename TIterator , typename TInteger , int connectivity>

DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::ArithmeticalDSS3d ( const ArithmeticalDSS3d< TIterator, TInteger, connectivity > & other )

inline

Copy constructor.

Parameters:

other the object to clone.

Copy constructor.

Parameters:

other the object to clone. Forbidden by default.

Definition at line 127 of file ArithmeticalDSS3d.ih.

                                                                                                                                                 :
  myProjXY(other.myProjXY), myProjXZ(other.myProjXZ), myProjYZ(other.myProjYZ),
  myXYalgo(other.myXYalgo), myXZalgo(other.myXZalgo), myYZalgo(other.myYZalgo),
  myBegin(other.myBegin), myEnd(other.myEnd) {}

template<typename TIterator, typename TInteger, int connectivity>

DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::~ArithmeticalDSS3d ( )

inline

Destructor.

Definition at line 184 of file ArithmeticalDSS3d.h.

{};

Member Function Documentation

template<typename TIterator , typename TInteger , int connectivity>

TIterator DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::begin ( ) const

inline

Returns:: begin iterator of the 3d DSS range.

Definition at line 275 of file ArithmeticalDSS3d.ih.

Referenced by DGtal::Display3DFactory::drawAsBoundingBox(), and DGtal::Display3DFactory::drawAsPoints().

                                                                     {
  return myBegin;
}

template<typename TIterator, typename TInteger, int connectivity>

DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::BOOST_CONCEPT_ASSERT ( (CInteger< TInteger >) )

template<typename TIterator , typename TInteger , int connectivity>

std::string DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::className ( ) const

inline

Returns:: the style name used for drawing this object.

Definition at line 408 of file ArithmeticalDSS3d.ih.

Referenced by DGtal::Display3DFactory::draw().

{
  return "ArithmeticalDSS3d";
}

template<typename TIterator , typename TInteger , int connectivity>

TIterator DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::end ( ) const

inline

Returns:: end iterator of the 3d DSS range.

Definition at line 282 of file ArithmeticalDSS3d.ih.

Referenced by DGtal::Display3DFactory::drawAsBoundingBox(), and DGtal::Display3DFactory::drawAsPoints().

                                                                   {
  return myEnd;
}

template<typename TIterator , typename TInteger , int connectivity>

bool DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::extendForward ( )

inline

Tests whether the current DSS can be extended at the front. Computes the parameters of the extended DSS if yes. with the adding point if true.

Returns:: 'true' if yes, 'false' otherwise.

Tests whether the union between a point (adding to the front of the DSS with respect to the scan orientaion) and a DSS is a DSS. Computes the parameters of the new DSS with the adding point if true.

Parameters:

it	an iterator on a sequence of points

Returns:: 'true' if the union is a DSS, 'false' otherwise.

Definition at line 230 of file ArithmeticalDSS3d.ih.

References DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::extendForward().

Referenced by DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::extendForward().

{
  if( isExtendableForward() ) {
    bool XYflag = myXYalgo.extendForward();
    bool XZflag = myXZalgo.extendForward();
    bool YZflag = myYZalgo.extendForward();
    ASSERT( (XYflag)&&(XZflag)&&(YZflag) );
    myEnd++;
    return true;
  } else return false;
}

template<typename TIterator , typename TInteger , int connectivity>

void DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::getParameters	(	Vector3d &	direction,
		PointD3d &	intercept,
		PointD3d &	thickness
	)		const

inline

Computes the parameters (direction, intercept, thickness) of the DSS

Parameters:

direction
intercept
thickness

Definition at line 318 of file ArithmeticalDSS3d.ih.

Referenced by DGtal::Display3DFactory::drawAsBoundingBox().

{
  //let us take the pair of projection planes for which
  //the common coordinate of the main vector cannot be 0
  if (myXYalgo.getB() != 0) { //XY-plane, XZ-plane
    Integer a1 = myXYalgo.getB();
    Integer b1 = myXYalgo.getA();
    Integer a2 = myXZalgo.getB();
    Integer c1 = myXZalgo.getA();
    direction = Point3d(a1*a2,a2*b1,a1*c1);
    Integer mu1 = myXYalgo.getMu();
    Integer mu2 = myXZalgo.getMu();
    double y = (double) -NumberTraits<TInteger>::castToInt64_t(mu1) / a1;
    double z = (double) -NumberTraits<TInteger>::castToInt64_t(mu2) / a2;
    intercept = PointD3d(0,y,z);
    Integer omega1 = myXYalgo.getOmega()-1;
    Integer omega2 = myXZalgo.getOmega()-1;
    double ty = (double) -NumberTraits<TInteger>::castToInt64_t(omega1) / a1;
    double tz = (double) -NumberTraits<TInteger>::castToInt64_t(omega2) / a2;
    thickness = PointD3d(0,ty,tz);
  } else {
    if (myXYalgo.getA() != 0) {//XY-plane, YZ-plane
      Integer a1 = myXYalgo.getB();
      Integer b1 = myXYalgo.getA();
      Integer b2 = myYZalgo.getB();
      Integer c2 = myYZalgo.getA();
      direction = Point3d(b1*a1,b1*b2,b2*c2);
      Integer mu1 = myXYalgo.getMu();
      Integer mu2 = myYZalgo.getMu();
      double x = (double) NumberTraits<TInteger>::castToInt64_t(mu1) / b1;
      double z = (double) -NumberTraits<TInteger>::castToInt64_t(mu2) / b2;
      intercept = PointD3d(x,0,z);
      Integer omega1 = myXYalgo.getOmega()-1;
      Integer omega2 = myYZalgo.getOmega()-1;
      double tx = (double) NumberTraits<TInteger>::castToInt64_t(omega1) / b1;
      double tz = (double) -NumberTraits<TInteger>::castToInt64_t(omega2) / b2;
      thickness = PointD3d(tx,0,tz);
    } else {
      if (myYZalgo.getA() != 0) {//YZ-plane, XZ-plane
        Integer b2 = myYZalgo.getB();
        Integer c2 = myYZalgo.getA();
        Integer a2 = myXZalgo.getB();
        Integer c1 = myXZalgo.getA();
        direction = Point3d(c2*a2,c1*b2,c1*c2);
        Integer mu1 = myYZalgo.getMu();
        Integer mu2 = myXZalgo.getMu();
        double y = (double) NumberTraits<TInteger>::castToInt64_t(mu1) / c2;
        double x = (double) NumberTraits<TInteger>::castToInt64_t(mu2) / c1;
        intercept = PointD3d(x,y,0);
        Integer omega1 = myYZalgo.getOmega()-1;
        Integer omega2 = myXZalgo.getOmega()-1;
        double ty = (double) NumberTraits<TInteger>::castToInt64_t(omega1) / c2;
        double tx = (double) NumberTraits<TInteger>::castToInt64_t(omega2) / c1;
        thickness = PointD3d(tx,ty,0);
      } else {//degenerated case
        direction = Point3d(0,0,0);
        intercept = PointD3d(0,0,0);
        thickness = PointD3d(0,0,0);
      }
    }
  }
}

template<typename TIterator , typename TInteger , int connectivity>

DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::Reverse DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::getReverse ( ) const

inline

Returns:: a default-constructed instance of Reverse.

Definition at line 170 of file ArithmeticalDSS3d.ih.

                                                                          {
  return Reverse();
}

template<typename TIterator , typename TInteger , int connectivity>

DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::Self DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::getSelf ( ) const

inline

Returns:: a default-constructed instance of Self.

Definition at line 162 of file ArithmeticalDSS3d.ih.

                                                                       {
  return Self();
}

template<typename TIterator , typename TInteger , int connectivity>

void DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::init ( const ConstIterator & it )

inline

Initialisation.

Parameters:

it	an iterator

Initialisation.

Parameters:

it	an iterator on a sequence of points

Definition at line 99 of file ArithmeticalDSS3d.ih.

{
  //begin and end iterators
  myBegin = it;
  myEnd = it;

  myEnd++;

  //adapters and projections
  IteratorAdapter XYit(it,myProjXY);
  myXYalgo.init(XYit);

  IteratorAdapter XZit(it,myProjXZ);
  myXZalgo.init(XZit);

  IteratorAdapter YZit(it,myProjYZ);
  myYZalgo.init(YZit);
}

template<typename TIterator , typename TInteger , int connectivity>

bool DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::isExtendableForward ( )

inline

Tests whether the 3d DSS can be extended at the front.

Returns:: 'true' if yes, 'false' otherwise

Definition at line 253 of file ArithmeticalDSS3d.ih.

References DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::isExtendableForward().

Referenced by DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::isExtendableForward().

{
  //projection on xy-plane
  bool XYflag = myXYalgo.isExtendableForward();

  //projection on xz-plane
  bool XZflag = myXZalgo.isExtendableForward();

  //projection on yz-plane
  bool YZflag = myYZalgo.isExtendableForward();

  if ( (XYflag)&&(XZflag)&&(YZflag) )
    return true;
  else return false;
}

template<typename TIterator , typename TInteger , int connectivity>

bool DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::isValid ( ) const

inline

Checks the validity/consistency of the object.

Returns:: 'true' if the object is valid, 'false' otherwise.

Definition at line 298 of file ArithmeticalDSS3d.ih.

{
  return ( (myXYalgo.isValid())&&
           (myXZalgo.isValid())&&
           (myYZalgo.isValid()) );
}

template<typename TIterator , typename TInteger , int connectivity>

bool DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator!= ( const ArithmeticalDSS3d< TIterator, TInteger, connectivity > & other ) const

inline

Difference operator.

Parameters:

other the object to compare with.

Returns:: 'false' if equal 'true' otherwise

Definition at line 208 of file ArithmeticalDSS3d.ih.

{
  return (!(*this == other));
}

template<typename TIterator , typename TInteger , int connectivity>

DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity > & DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator= ( const ArithmeticalDSS3d< TIterator, TInteger, connectivity > & other )

inline

Assignment.

Parameters:

other the object to copy.

Returns:: a reference on 'this'.

Assignment.

Parameters:

other the object to copy.

Returns:: a reference on 'this'. Forbidden by default.

Definition at line 143 of file ArithmeticalDSS3d.ih.

{
  myProjXY = other.myProjXY;
  myProjXZ = other.myProjXZ;
  myProjYZ = other.myProjYZ;
  myXYalgo = other.myXYalgo;
  myXZalgo = other.myXZalgo;
  myYZalgo = other.myYZalgo;
  myBegin = other.myBegin;
  myEnd = other.myEnd;
  return *this;
}

template<typename TIterator , typename TInteger , int connectivity>

bool DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator== ( const ArithmeticalDSS3d< TIterator, TInteger, connectivity > & other ) const

inline

Equality operator.

Parameters:

other the object to compare with.

Returns:: 'true' either if the leaning points perfectly match or if the first leaning points match to the last ones (same DSS scanned in the reverse way) and 'false' otherwise

Equality operator.

Parameters:

other the object to compare with.

Returns:: 'true' either if the points perfectly match or if the first points match to the last ones (same DSS scanned in the conversed way) and 'false' otherwise

Definition at line 189 of file ArithmeticalDSS3d.ih.

References DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::myBegin, DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::myEnd, DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::myXYalgo, DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::myXZalgo, and DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::myYZalgo.

{
  return (  (   myXYalgo == other.myXYalgo ) &&
            (   myXZalgo == other.myXZalgo ) &&
            (   myYZalgo == other.myYZalgo ) &&
            (*myBegin == *other.myBegin) &&
            (*myEnd == *other.myEnd) );
}

template<typename TIterator , typename TInteger , int connectivity>

void DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::selfDisplay ( std::ostream & out )

inline

Writes/Displays the object on an output stream.

Parameters:

out	the output stream where the object is written.

Definition at line 423 of file ArithmeticalDSS3d.ih.

{

  out << "[ArithmeticalDSS3d]" <<  endl;
  out << "[XYprojection]" <<  endl;
  out << myXYalgo <<  endl;
  out << "[XZprojection]" <<  endl;
  out << myXZalgo <<  endl;
  out << "[YZprojection]" <<  endl;
  out << myYZalgo <<  endl;
  out << "[End ArithmeticalDSS3d]" <<  endl;

}

Field Documentation

template<typename TIterator, typename TInteger, int connectivity>

ConstIterator DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::myBegin

protected

begin and end iterators

Definition at line 263 of file ArithmeticalDSS3d.h.

Referenced by DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator=(), and DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator==().

template<typename TIterator, typename TInteger, int connectivity>

ConstIterator DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::myEnd

protected

Definition at line 263 of file ArithmeticalDSS3d.h.

Referenced by DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator=(), and DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator==().

template<typename TIterator, typename TInteger, int connectivity>

Projector2d DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::myProjXY

protected

projectors

Definition at line 255 of file ArithmeticalDSS3d.h.

Referenced by DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator=().

template<typename TIterator, typename TInteger, int connectivity>

Projector2d DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::myProjXZ

protected

Definition at line 255 of file ArithmeticalDSS3d.h.

Referenced by DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator=().

template<typename TIterator, typename TInteger, int connectivity>

Projector2d DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::myProjYZ

protected

Definition at line 255 of file ArithmeticalDSS3d.h.

Referenced by DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator=().

template<typename TIterator, typename TInteger, int connectivity>

ArithmeticalDSS2d DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::myXYalgo

protected

2d-arithmeticalDSS recognition algorithms

Definition at line 258 of file ArithmeticalDSS3d.h.

Referenced by DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator=(), and DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator==().

template<typename TIterator, typename TInteger, int connectivity>

ArithmeticalDSS2d DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::myXZalgo

protected

Definition at line 259 of file ArithmeticalDSS3d.h.

Referenced by DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator=(), and DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator==().

template<typename TIterator, typename TInteger, int connectivity>

ArithmeticalDSS2d DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::myYZalgo

protected

Definition at line 260 of file ArithmeticalDSS3d.h.

Referenced by DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator=(), and DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >::operator==().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Attributes

Detailed Description

template<typename TIterator, typename TInteger, int connectivity> class DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Field Documentation

template<typename TIterator, typename TInteger, int connectivity>
class DGtal::ArithmeticalDSS3d< TIterator, TInteger, connectivity >
